30 Pallets/H Rotary Arm Stretch Wrapper
MP402D Rotary Arm Stretch Wrapper description
While the pallet lies on the conveyor, the wrapping cycle is
carried out by a rotating arm holding a film-roll. A steady and
compact packing is guaranteed for all sorts of palletized products
by a multiplayer wrapping made with stretch film. It is
particularly suitable for light and unsteady charges. This machine
can be installed on any existing packing line and it perfectly
meets high production needs.
Rotary Arm Stretch Wrapper Details
Floor Mounted Frame
This machine concept keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film. The rotary arm stretch wrapper is the perfect solution in situations where the load is very unstable (very tall, too heavy, too light) or in a washdown environment.
Easy operation 3 STEP "EASY THREAD" film Loading Ensures Safety
Re-loading the Film roll on any carriage is not an easy task with many rotary arm pallet packing machines. With our “Easy Thread” access design, we make it simple and safer.Simply unlatch and open the access door, pull film tail past open access door and close the door. It's that simple!
Specifications of Rotary Arm Stretch Wrapper
Pallet size | W(500-1200)mm * L(500-1200)mm |
Wrapping height | 1800mm |
Packing speed | 30-35 pallets/h |
Rotation speed | 0-20rpm/h |
Air pressure | 0.4-0.7Mpa |
Cut method | heater |
Control | PLC+touch screen+inverter |
Working mode | fully automatic unmanned |
Top sheet pulling speed | 12m/min |
Top sheet size | W180mm,length adjustable |
Conveyor speed | 0-12m/min |
Power | 3PH 380VAC,50/60HZ,20A,2.5kw |
Dimension | 3200*3220*3120mm |
Machine weight | 1800kg |

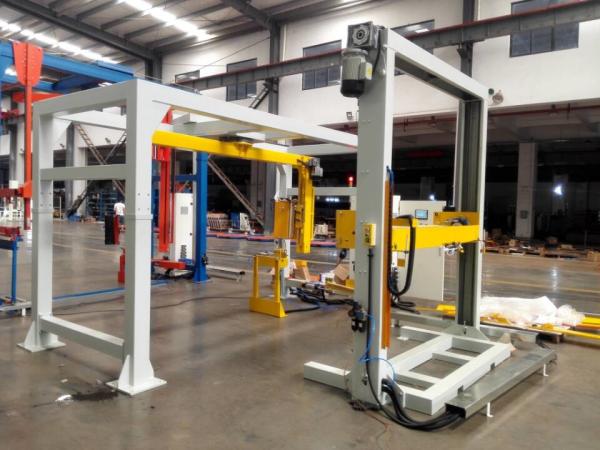

Rotary Arm Stretch Wrapper Pictures
Service
1. Pre-sale service:
1) We provide presales service in various forms, making investment
budge, manufacturing, planning, so that customers can make a
reasonable plan with less cost.
2) We will first check customer's good and goods size, then we will
recommend suitable wrapping machine to 100% suitable.
3) We will recommand and offer machine according to customer's use
and purchase budge.
2. In-sale service:
1) We will supply each manufacturing step photo for customer
checking on time.
2) We will prepare packing and shipment according to customer's
needing inadvance.
3) Testing the machine and making video for customer's checking.
3. After-sale service:
1) We will guarantee the machine quality for one year.
2) We provide free training and answer customer's question on
technology in time.
![]() |
