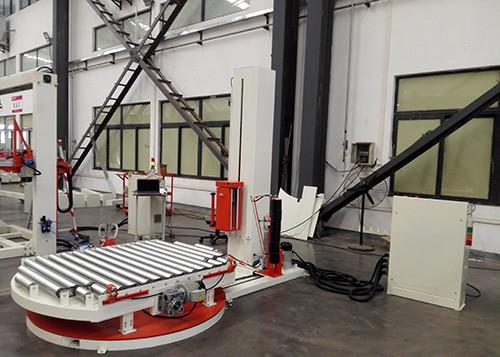

7m/Min Automatic Turntable Stretch Wrapper
Control Systerm of Automatic Turntable Stretch Wrapper
PLC programmable control.
The top and bottom winding layers and numbers,crossing the top
time, reinforcement plies 0-9 can directly set on the panel.
Simple operation: just press the automatic function button, can
complete the whole packaging process.
Photoelectric switch, automatic sensing cargo height.
Excellent selection of electrical control components, high
reliability.
Automatic and manual conversion at any time.
Turntable System of Automatic Turntable Stretch Wrapper
Rotary variable speed 0-13rpm adjustable by frequency changer,the
turntable can be positioned accurately.
The turntable automatically reset when packaging finished over.
The turntable select the pure steel high wear-resistant material.
Specifications of Automatic Turntable Stretch Wrapper
| Name | 7m/Min Automatic Turntable Stretch Wrapper |
| Control | PLC+touch screen |
| Cargo size | L1200*W1200*H2000mm max |
| Cargo weight | 1000kg max |
| Turntable diameter | φ2000mm |
| Turntable speed | 0-15rpm |
| Column height | 2500mm |
| Carriage type | pre-stretch carriage |
| Roller specification | t3.0*φ76*1300mm(inner core φ20mm) |
| Roller wheelbase | 118.8mm |
| Conveyor chain | 10A-1 |
| Conveyor height | 450mm |
| Conveyor speed | 7m/min |
| Packing material | stretch film,φ250mm,width500mm,inner core φ76mm |
| Cut method | heat blow |
| Air pressure | 0.4-0.7Mpa |
| Power | AC380V/50HZ |
| Motor | turntable motor 0.75kw, column motor 0.4kw, carriage motor 0.35kw,
conveyor motor 0.75kw |
Advantages:
1. 200% pre-stretch rate
Pre-stretch is normal function of wrapping machine. But most
wrapping machines in the market stick the rubber on the roller with
glue, which are easily broken while working ,and make the film
crumply. If there is label on pallet, it will be difficult to scan
the barcode on the label. Automatic Turntable Stretch Wrapper uses
ruber coated roller to avoid rubber dropping , makes stretch film
soomthly, after stretching, film can still be transparent. Barcode
on label can be easily scanned too.
2. Intelligent Touch screen
pallet wrapping machine use the best touch screen, the reaction of
the touch screen and function all is perfect
The touch screen can set the "turntable speed .up& down speed and
film carriagre speed directly" and we also prepare for our
customer, most of customers have diffierent pallet to wrap, so the
different pallets need different wrapping speed, wrapping force,
the customer just need set the models one time, then just choose
the right model for their pallet, no need adjsut the parameter
every time any more.
Features:
1. Pallet wrap machine use stretch film as the main packing
material to wrap the bulk cargos stacked on the pallet
2. Film provides extra support during transportation and storage to
protect them from dust, moisture or damage.
3. The pallet wrap machine has been widely used in industries such
as glassware, tools, electric & electronic, paper,pottery, food &
beverage, et.
