15rpm Automatic Turntable Stretch Wrapper
Automatic Turntable Stretch Wrapper description
Automatic Turntable Stretch Wrapper is one of the fully automatic stretch wrapping machine , this type
of wrapping machine has been designed as automatic as possible.
Once the film has been loaded into the film jaw clamps there is no
need to attach the film to the pallet in the normal way. At the end
of the cycle the machine cuts the film with a hot wire, secures the
tail end on to the pallet and then grips the film ready for the
next load. It even comes with a remote control so if loaded by a
lift truck the driver does not have to get out of his vehicle.
Advantages of Automatic Turntable Stretch Wrapper:
1. 200% pre-stretch rate
Pre-stretch is normal function of wrapping machine. But most
wrapping machines in the market stick the rubber on the roller with
glue, which are easily broken while working ,and make the film
crumply. If there is label on pallet, it will be difficult to scan
the barcode on the label. Automatic Turntable Stretch Wrapper uses
ruber coated roller to avoid rubber dropping , makes stretch film
soomthly, after stretching, film can still be transparent. Barcode
on label can be easily scanned too.
2. Intelligent Touch screen
pallet wrapping machine use the best touch screen, the reaction of
the touch screen and function all is perfect
The touch screen can set the "turntable speed .up& down speed and
film carriagre speed directly" and we also prepare for our
customer, most of customers have diffierent pallet to wrap, so the
different pallets need different wrapping speed, wrapping force,
the customer just need set the models one time, then just choose
the right model for their pallet, no need adjsut the parameter
every time any more.
Features of Automatic Turntable Stretch Wrapper :
1. Automatic Turntable Stretch Wrapper use stretch film as the main
packing material to wrap the bulk cargos stacked on the pallet
2. Film provides extra support during transportation and storage to
protect them from dust, moisture or damage.
3. The pallet wrap machine has been widely used in industries such
as glassware, tools, electric & electronic, paper,pottery, food &
beverage, et.
Specifications of Automatic Turntable Stretch Wrapper
| Control | PLC+touch screen |
| Cargo size | L1200*W1200*H2000mm max |
| Cargo weight | 1000kg max |
| Turntable diameter | φ2000mm |
| Turntable speed | 0-15rpm |
| Column height | 2500mm |
| Carriage type | pre-stretch carriage |
| Roller specification | t3.0*φ76*1300mm(inner core φ20mm) |
| Roller wheelbase | 118.8mm |
| Conveyor chain | 10A-1 |
| Conveyor height | 450mm |
| Conveyor speed | 7m/min |
| Packing material | stretch film,φ250mm,width500mm,inner core φ76mm |
| Cut method | heat blow |
| Air pressure | 0.4-0.7Mpa |
| Power | AC380V/50HZ |
| Motor | turntable motor 0.75kw, column motor 0.4kw, carriage motor 0.35kw,
conveyor motor 0.75kw |

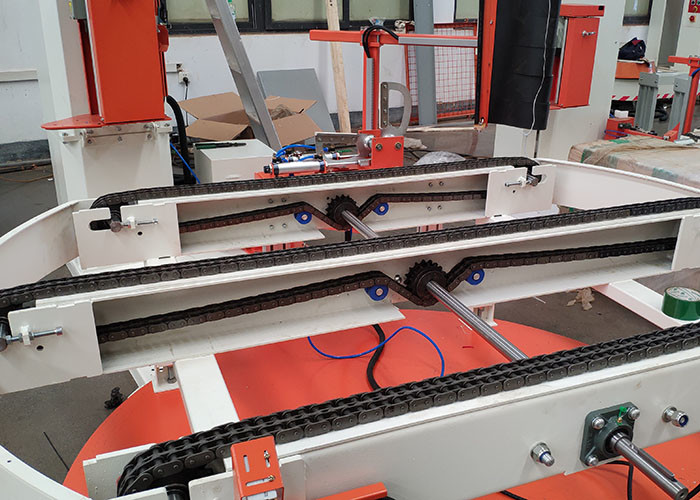

Automatic Turntable Stretch Wrapper Pictures
Service
1. Pre-sale service:
1) We provide presales service in various forms, making investment
budge, manufacturing, planning, so that customers can make a
reasonable plan with less cost.
2) We will first check customer's good and goods size, then we will
recommend suitable wrapping machine to 100% suitable.
3) We will recommand and offer machine according to customer's use
and purchase budge.
2. In-sale service:
1) We will supply each manufacturing step photo for customer
checking on time.
2) We will prepare packing and shipment according to customer's
needing inadvance.
3) Testing the machine and making video for customer's checking.
3. After-sale service:
1) We will guarantee the machine quality for one year.
2) We provide free training and answer customer's question on
technology in time.
